Pexco is Illuminating the Future

In the ever-evolving world of lighting, manufacturers are constantly seeking materials and technologies that deliver superior performance, energy efficiency, cost-effectiveness, and design flexibility. One technology that has risen to the top in addressing these demands is resin crosshead extrusion. Though widely used in the wire and cable industry, crosshead extrusions made from specialty resins are now playing a transformative role in lighting applications—from architectural lighting to outdoor fixtures and commercial systems.

This blog explores the unique properties and advantages of resin crosshead extrusions, why they are well-suited for lighting applications, and how they are shaping the future of the lighting industry.

---

What Is Resin Crosshead Extrusion?

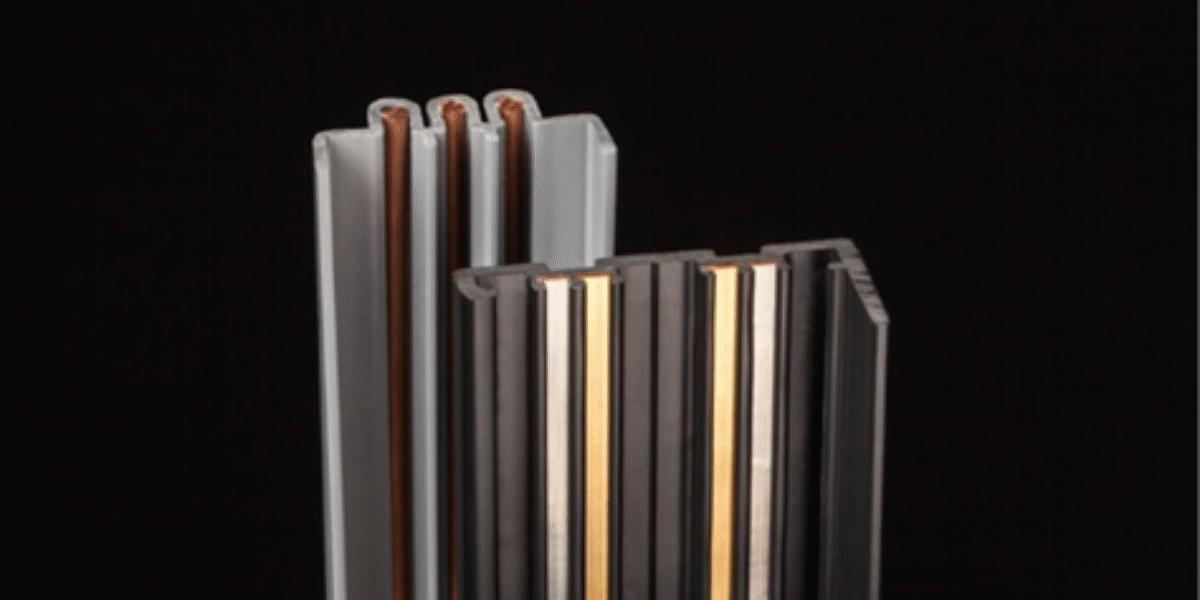

Resin crosshead extrusion is a manufacturing process in which a thermoplastic or thermosetting resin (such as ACR, PC, PVC, PE, TPE, or other engineered polymers) is applied around a substrate—often a copper or aluminum wire or core—via a crosshead die. This technique allows for precise control over the geometry, wall thickness, and material properties of the extruded jacket or component.

Unlike standard extrusion where the resin is pushed through a die in a singular linear direction, the crosshead process introduces the material radially, encapsulating the substrate from all sites. This 360-degree coverage is vital for achieving uniformity, protection, and performance – qualities that are now in high demand in lighting applications.

Key Benefits of Resin Crosshead Extrusions in Lighting

1. Superior Environmental Protection Lighting systems—especially outdoor and industrial installations—are frequently exposed to harsh environmental conditions: moisture, dust, UV radiation, chemicals, temperature extremes, and mechanical wear. Resin crosshead extrusions provide a robust protective layer that shields internal components such as conductors, optics, and electronics from these threats.
   • UV-resistant polymers such as UV-stabilized acrylic and polycarbonate extend the life of lighting fixtures in outdoor environments.
   • Moisture barrier properties of certain resins prevent ingress that could corrode contacts or reduce optical efficiency.
   • Chemical resistance makes resin extrusions ideal for use in chemical plants, food processing facilities, or marine environments.
   • This level of protection not only extends product lifespan but also reduces maintenance costs and ensures safety.
2. Enhanced Thermal Management
   • Modern LED lighting systems are highly efficient, but they still generate heat that must be managed effectively. Improper thermal dissipation can degrade LED performance, shorten component life, and increase energy consumption.
   • Resin crosshead extrusions can be formulated with thermally conductive yet electrically insulating polymers to:
   • Transfer heat away from heat-sensitive components like LEDs and drivers.
   • Maintain the integrity of the light fixture without the need for bulky metal heat sinks.
   • Enable tight, compact fixture designs while managing thermal loads.
   • This is especially critical in high-density or sealed lighting enclosures such as those used in architectural lighting or automotive headlamps.
3. Electrical Insulation and Safety
   • In lighting systems, especially low-voltage or high-voltage installations, safety is non-negotiable. Crosshead-extruded resins can serve as primary electrical insulation, preventing arcing, short circuits, and accidental contact.
   • Flame-retardant grades of PVC, TPE, and other specialty compounds meet UL, CSA, and IEC standards.
   • Extruded jackets help achieve double insulation or Class II safety compliance, reducing the risk of electric shock.
   • The crosshead process ensures uniform wall thickness, eliminating weak spots that could compromise electrical performance under stress.
4. Design Flexibility and Aesthetics
   • Lighting is not just about function—it’s also about form. With resin crosshead extrusion, manufacturers gain enormous flexibility in designing lighting components that are:
   • Slim, low-profile, and suitable for integration into tight spaces.
   • Custom-shaped for architectural lighting, signage, or linear accent lighting.
   • Available in a wide variety of colors, finishes, and transparencies.
   • In diffused lighting applications, for example, translucent resins like polycarbonate or modified acrylics can act as both protective enclosures and optical diffusers. This dual functionality simplifies the bill of materials and assembly, reducing cost and improving consistency.
5. Cost Efficiency and Scalability
   • One of the key advantages of resin crosshead extrusion is its compatibility with high-throughput, continuous manufacturing processes. This results in:
   • Lower unit costs due to automation and material efficiency.
   • Reduced scrap rates compared to injection molding or multi-part assembly.
   • Scalability for long-run or high-volume lighting applications.
   • By integrating multiple functions (e.g., insulation, protection, aesthetics) into a single extrusion step, OEMs can reduce part count, labor, and logistics costs.
6. Compliance and Sustainability
   • Environmental regulations and sustainability goals are reshaping how lighting products are manufactured. Resin crosshead extrusions can help address both:
   • Low-halogen, RoHS-compliant materials are available to meet global regulatory standards.
   • Recyclable or bio-based resins are emerging as alternatives to traditional petroleum-based polymers.
   • Lightweight extrusions reduce overall product mass, contributing to lower transportation emissions and easier end-of-life handling.
   • Furthermore, because extrusion processes generate less waste than machining or molding, they align well with lean manufacturing and sustainability initiatives.

---

---

---

Applications in the Lighting Industry

Let’s examine how these benefits translate into real-world lighting applications:

---

---

---

Innovations and Future Outlook

The versatility of resin crosshead extrusion continues to expand as material science and processing technology advance. Innovations on the horizon include:

• Smart lighting integrations where extruded components embed sensors, controls, or wireless connectivity modules.
• Multi-layer extrusions combining different resin types in a single pass for tailored properties—e.g., an inner conductive shield with an outer UV-blocking layer.
• Optically active polymers that enhance light diffusion, directionality, or color tuning without added optical elements.

As lighting continues to shift toward connected, sustainable, and human-centric solutions, resin extrusion will remain a key enabler of both performance and design evolution.
