Industrial Coverings

Quickly and easily add long-lasting, heavy-gauge protection to conveyor rollers and skatewheels to help extend the life of your equipment. VinylGuard roller coverings are abrasion, chemical, and cut-resistant and shrink to fit both straight and tapered industrial conveyor rollers on material handling equipment.

Enhance the durability and lifespan of your conveyor rollers and skatewheels with VinylGuard roller coverings. Our heavy-gauge protection is designed for quick and easy application, providing long-lasting defense against abrasion, chemicals, and cuts. Ideal for both straight and tapered industrial conveyor rollers, VinylGuard coverings shrink to fit perfectly on your material handling equipment, ensuring optimal performance and extended equipment life.

Features and Benefits

  • Standard VinylGuard roller cover sleeves are 50 mils (nearly 1/16 inch) thick
  • We can manufacture custom conveyor roller covers in thicknesses up to 100 mils (1/10 inch)
  • VinylGuard conveyor roller covers are long-lasting — a full 85 durometer hardness
  • VinylGuard covers for material handling equipment have been load tested and proven to last millions of cycles, thousands of hours
  • Tough, thick VinylGuard conveyor roller covers protect delicate surfaces from the damage caused by uncovered metal conveyor rollers
  • VinylGuard roller sleeves are custom-engineered for high performance and long service life in harsh, industrial manufacturing environments and highly corrosive areas
  • VinylGuard shrink-to-fit roller covers have excellent resistance to chemicals, oils, grease, acids, chlorinated cleansers, salt, salt water, moisture, fungus and corrosion
  • Non-marking VinylGuard covered rollers will not stain, rust, crack or peel and are easy to clean
  • VinylGuard’s Food-Grade USFDA 21 CFR conveyor roller covers for Food-Grade material handling equipment systems comply with stringent United States Food and Drug Administration’s requirements for indirect contact with food
  • VinylGuard roller sleeves are flame retardant, lead-free, RoHS compliant, environmentally friendly and safe and contain no hazardous materials
    VinylGuard roller covers are made in the USA from the finest premium-grade, 100% virgin materials
  • VinylGuard roller covers are flame retardant
  • VinylGuard roller covers are lead-free and RoHS compliant
  • VinylGuard conveyor roller and skatewheel covers for Food-Grade material handling equipment comply with the Food and Drug Administration’s USFDA 21CFR requirements for indirect contact with food

Roller Covers

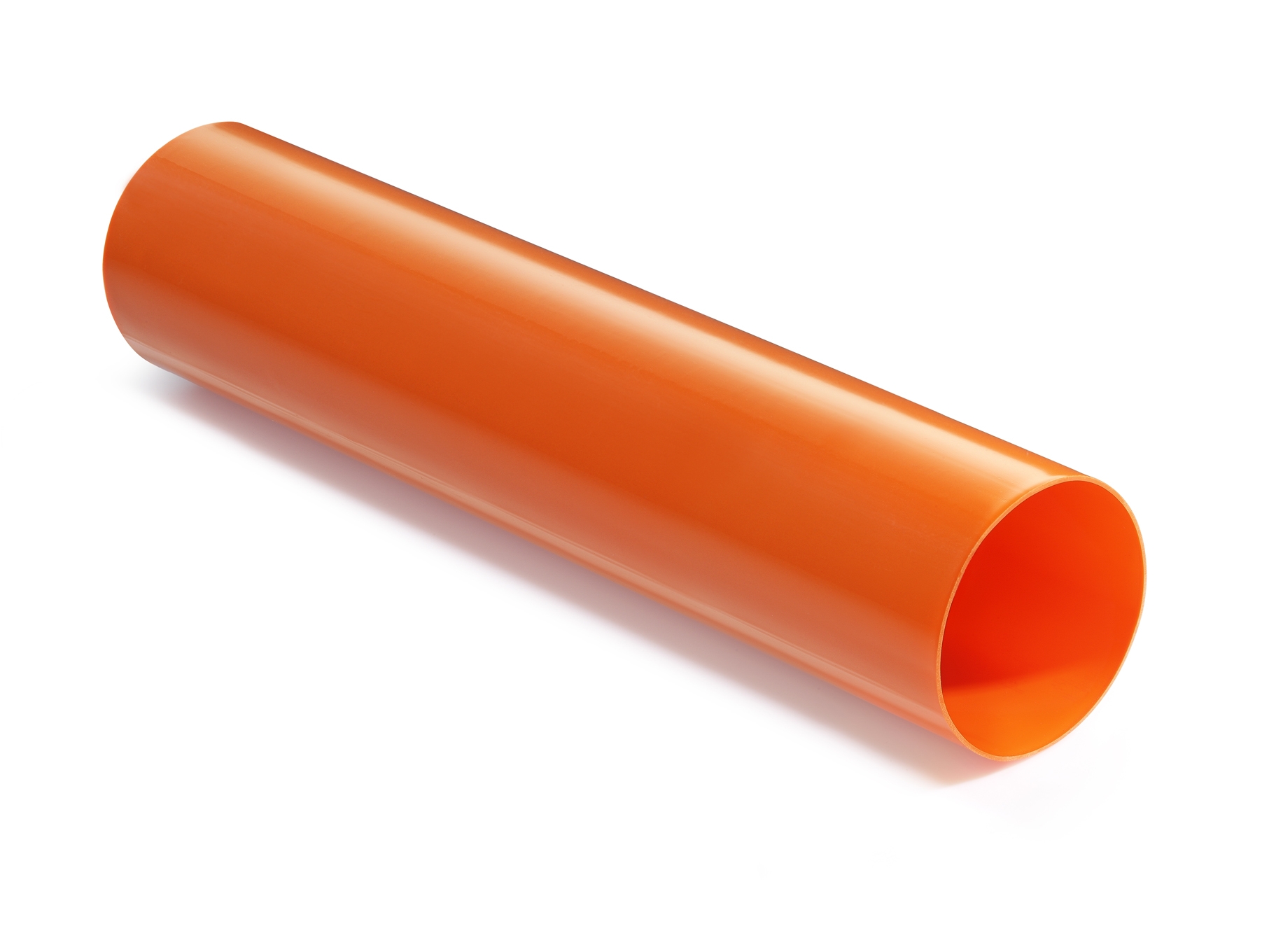

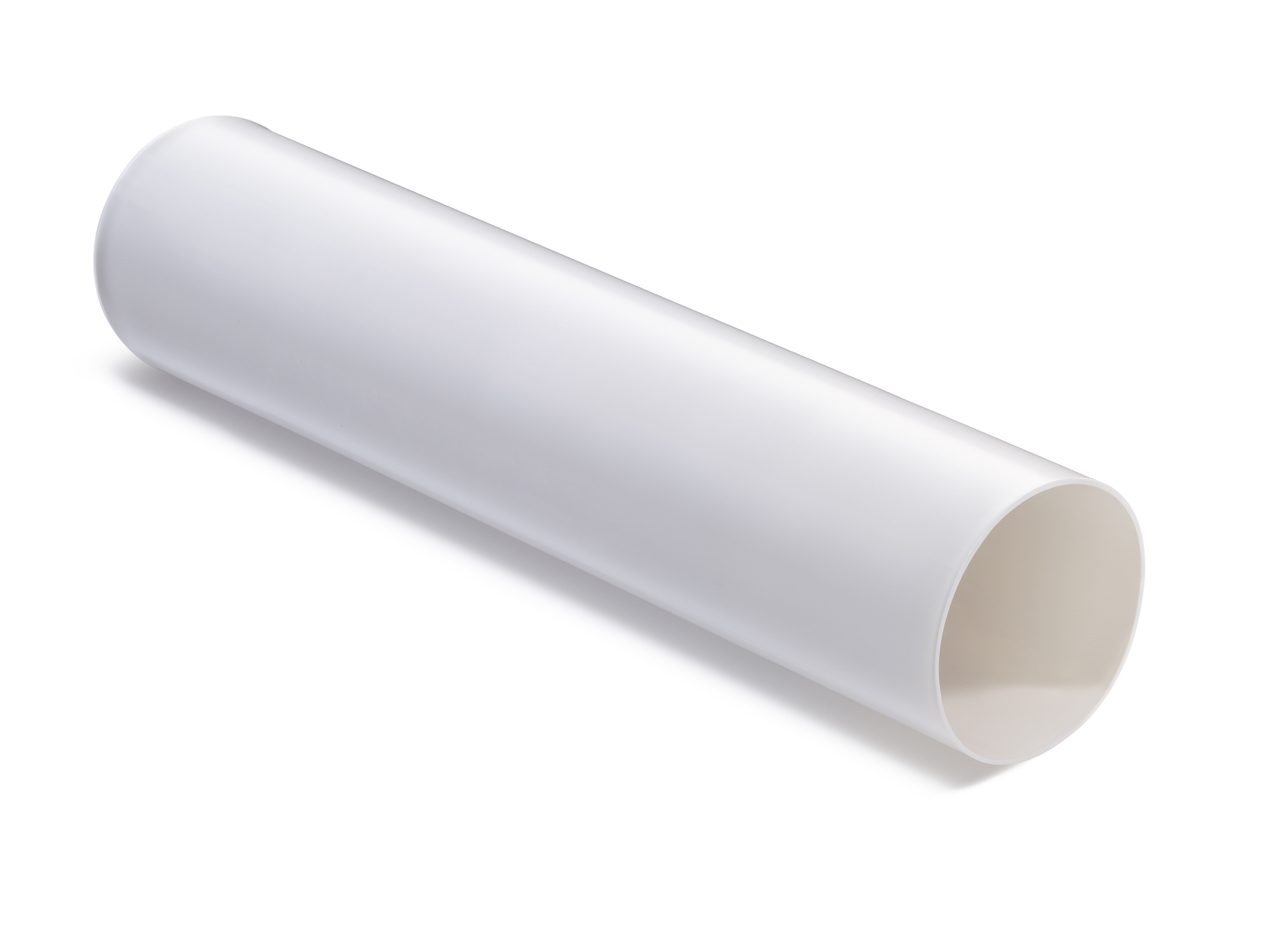

USFDA Food-Grade VinylGuard Tapered Roller Covers

Shock Absorbing – Cushioning Roller Coverings

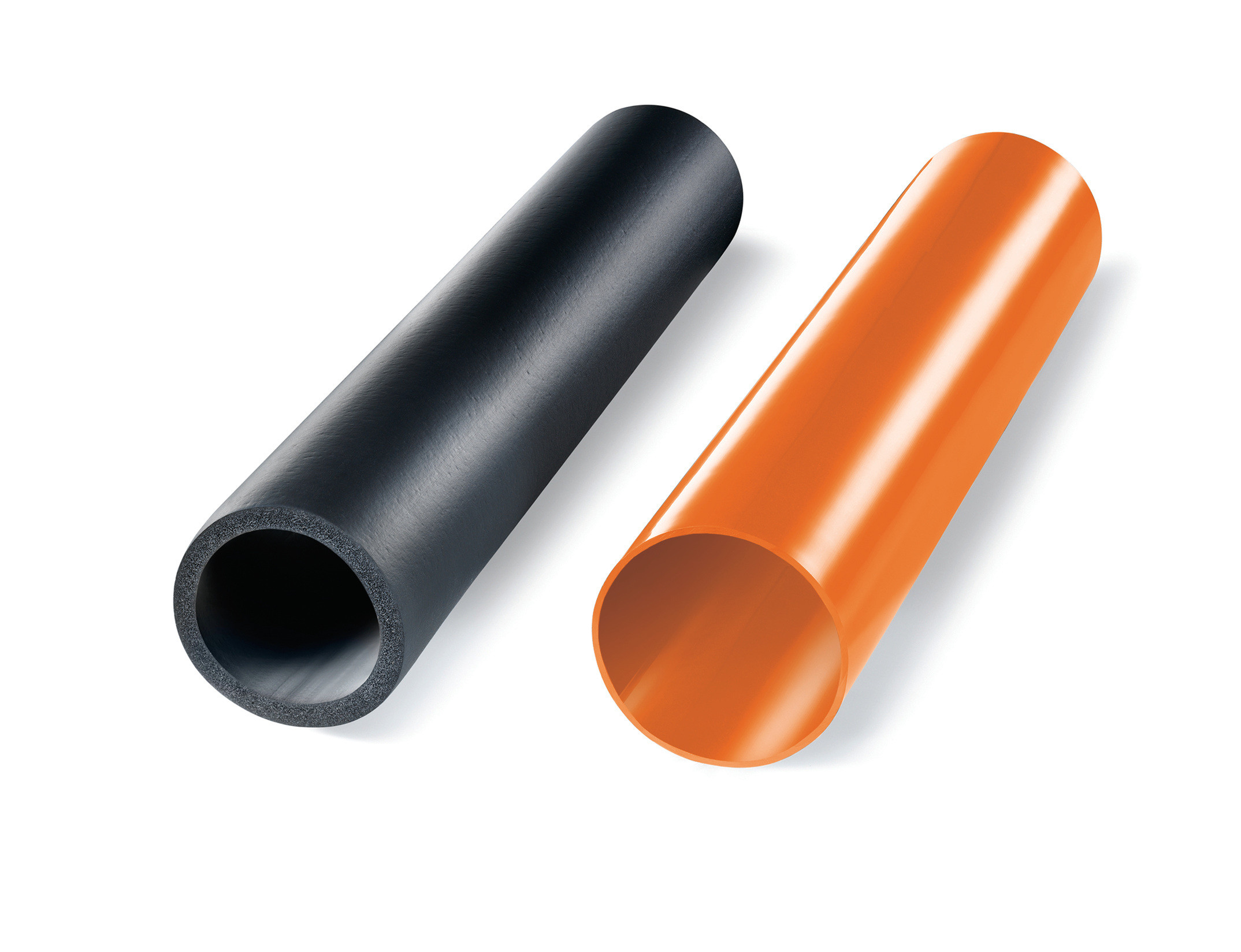

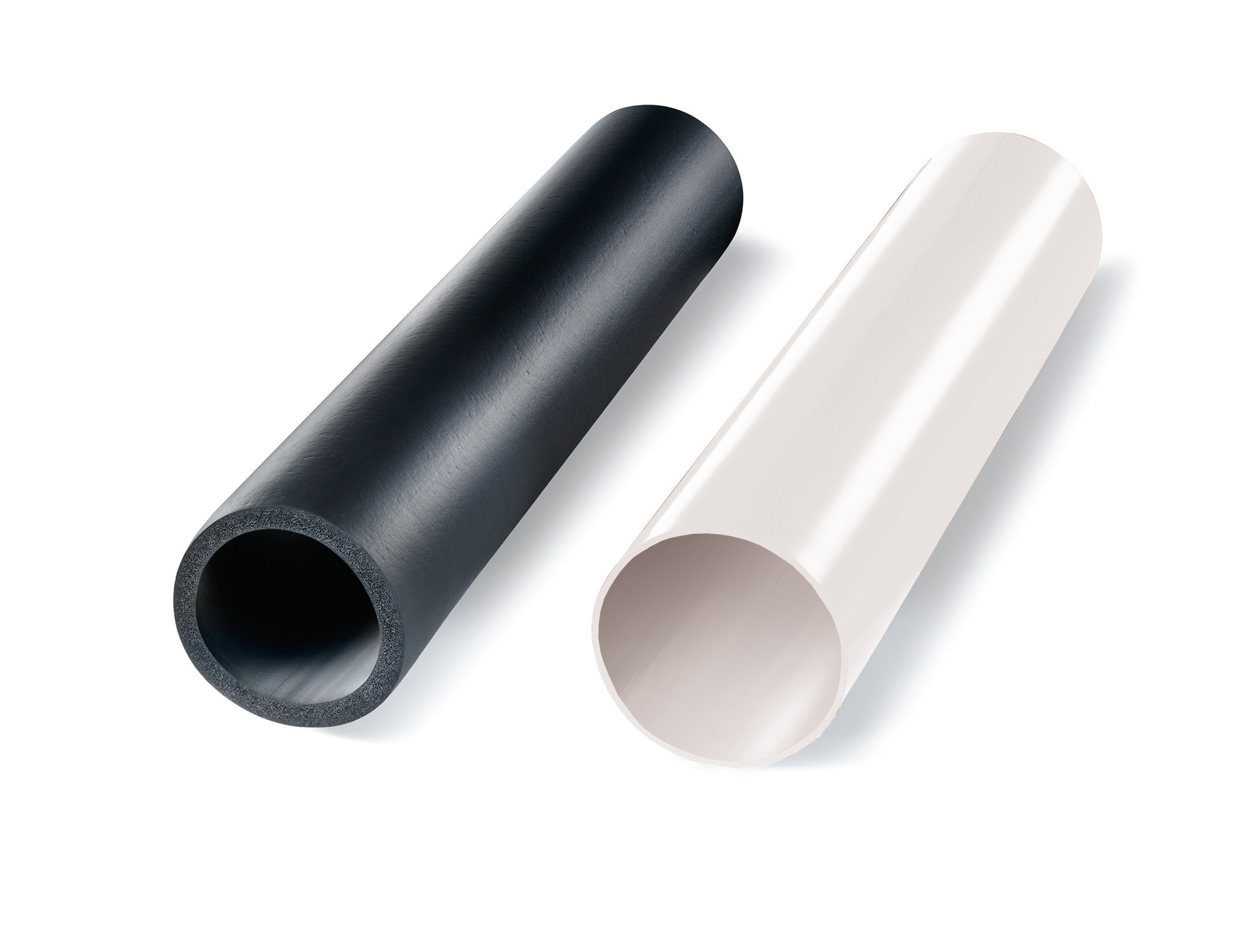

USFDA Food-Grade VinylGuard Straight Roller Covers

USFDA Food-Grade VinylGuard Straight Roller Covers

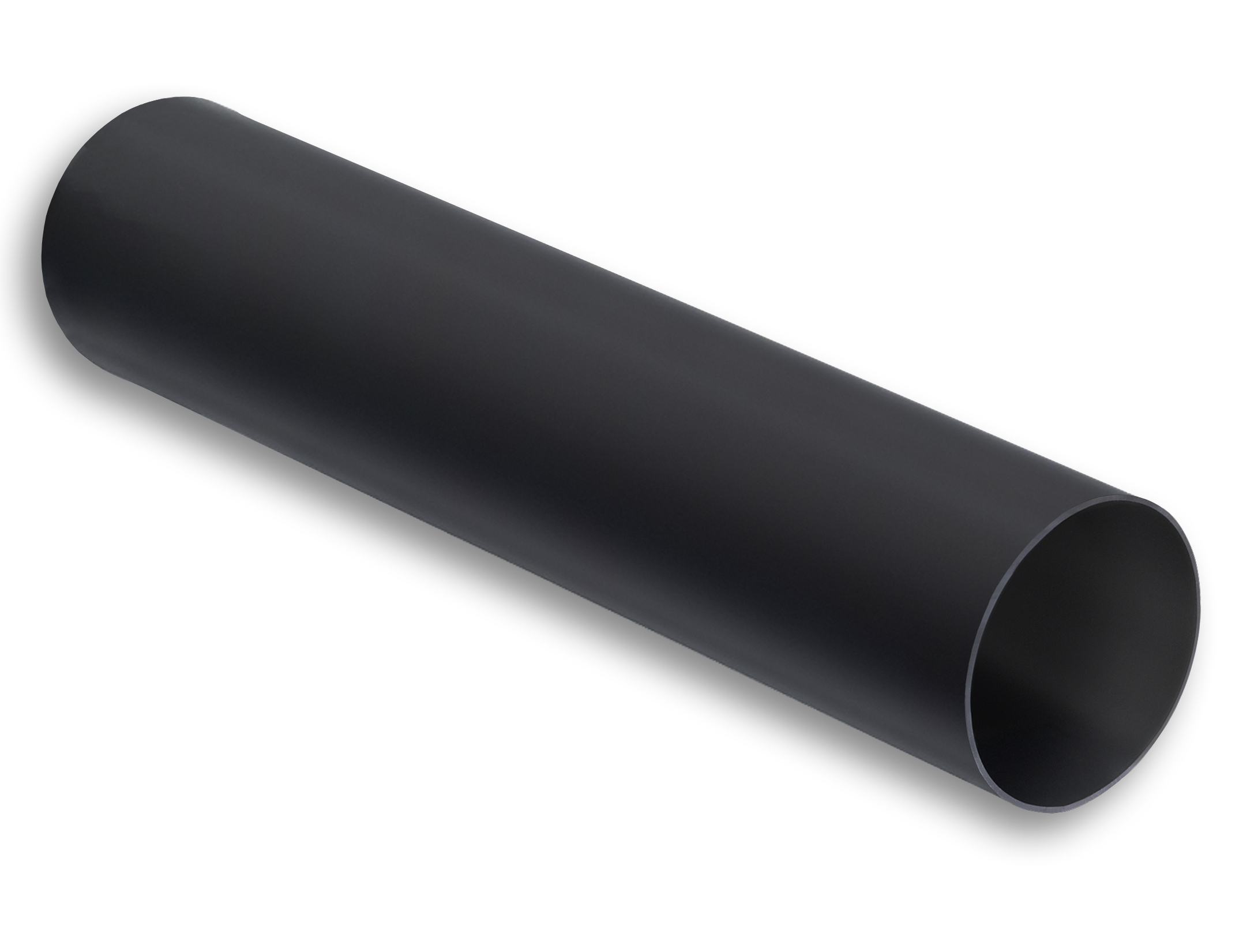

Extra Grip – Non Slip TractionPlus Roller Covers

USFDA Food-Grade Cushioning Roller Coverings

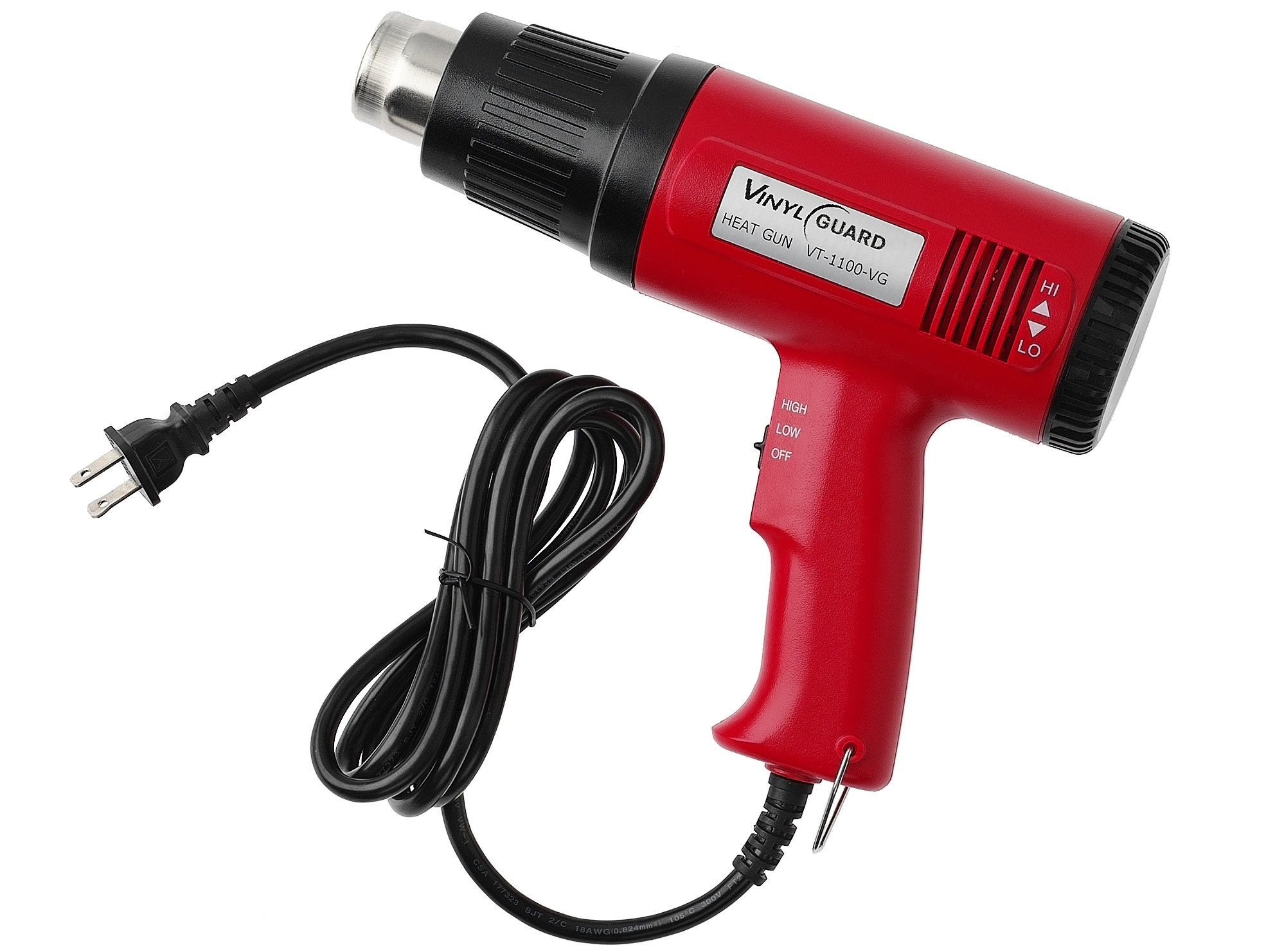

Recommended High Temperature Heat Gun


VinylGuard Technical Data

Standard Colors

  • Custom colors available upon request
  • 4 standard colors for Conveyor Roller and Skatewheel Covers
  • 1 Standard Color for Food-Grade USFDA (21CFR) Conveyor Roller and Skatewheel Covers

Standard Sizes

Standard size VinylGuard conveyor roller and skatewheel covers shrink to fit and tightly conform to the most popular sizes of conveyor rollers and skatewheels used in industrial conveyor systems.

Straight Rollers

Outside Diameter of Conveyor Roller:

  • 1.375″
  • 1.9″
  • 2.0″
  • 2.5″
  • 3″
  • 4″

Tapered Rollers

Outside Diameter of Conveyor Roller:

  • Wide end: 2.5″
  • Tapered end: 1.5″ up to 2″

Skatewheels

All skatewheel covers are sized for an industry standard

5/8″ wheel face width

Wheel Diameter: 1.5″ and 1-15/16″ to 2″

Technical Data

  • Minimum Recommended Shrink Temperature:
    100°C (212°F)
  • Tensile Strength:
    3,000 psi
  • Durometer:
    85 Durometer Shore A
  • Storage:
    Heat sensitive — Store at 70°F or below
