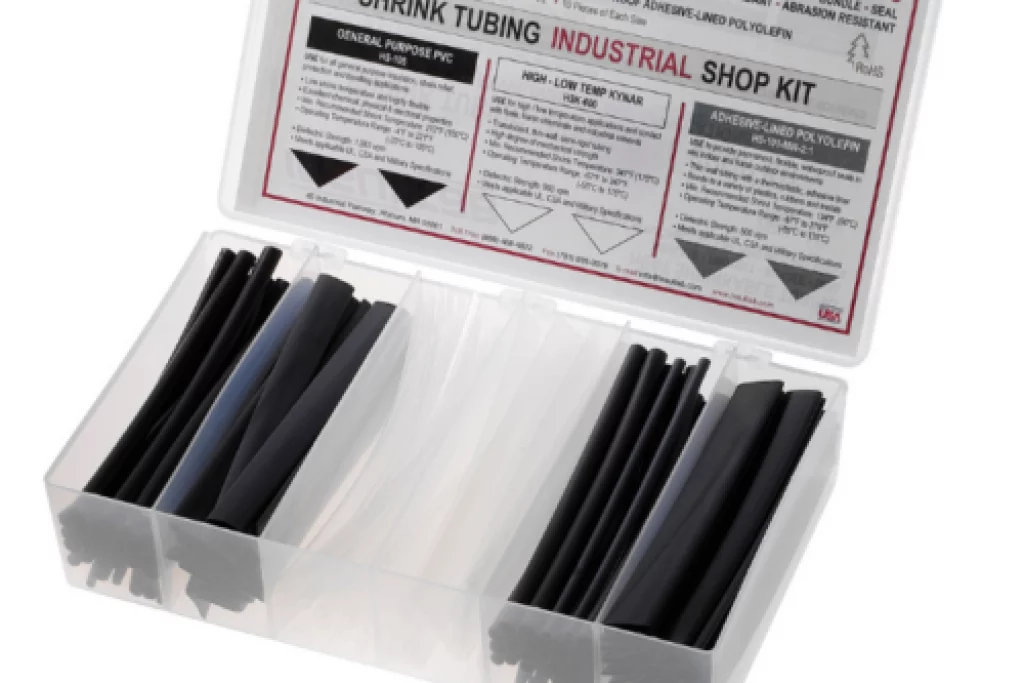

Shrink Tubing Industrial Shop Kit

Technical Specifications

Polyvinylchloride (PVC) HS-105

• Use for general purpose insulation, strain relief, protection and bundling applications
• Low shrink temperature and highly flexible
• Excellent chemical, physical and electrical properties
• Minimum Recommended Shrink Temperature: 212°F (100°C)
• Operating Temperature Range: -4°F to 221°F (-20 C to 105 C)
• Dielectric Strength: 1,083 vpm
• UL Subject 224 VW-1 • CSA OFT rated for 600V • ASTM D 3150 • SAE-AMS-DTL-23053/2 Class 2

Polyvinylidene Difluoride (PVDF) HSK-600

• Use for high and low temperature applications and contact with fuels, chemicals and industrial solvents
• Translucent, thin-wall, semi-rigid tubing
• High degree of mechanical strength
• Minimum Recommended Shrink Temperature: 347 F (175 C)
• Operating Temperature Range: -67 F to 347 (-55 C to 175 C)
• Dielectric Strength: 900 vpm
• UL VW-1 • CSA OFT • AMS 3632 • SAE-AMS-DTL-23053/8

Adhesive-Lined Polyolefin HS-101-MW-2:1

• Use to provide permanent, flexible, waterproof seals in wet indoor and harsh outdoor environments
• Thin wall tubing with a thermoplastic, adhesive liner
• Bonds to a variety of plastics, rubbers and metals
• Minimum Recommended Shrink Temperature: 194 F (90 C)
• Operating Temperature Range: -67 F to 275 F (-55 C to 135 C)
• Dielectric Strength: 500 vpm
• UL 224 (Jacket) • SAE-AMS-DTL-23053/4 Class 2
