HS-205 // Cross-Linked PVC Heat Shrink
HS-205 PVC

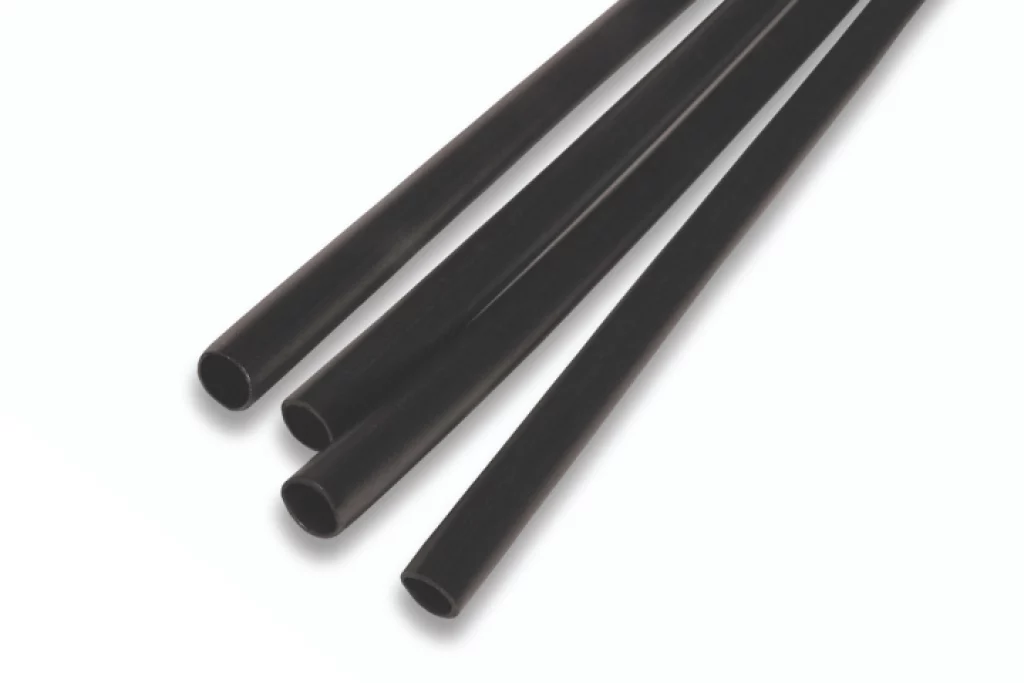

Cross-linked (irradiated) PVC delivers all the benefits of standard PVC heat shrink tubing, with enhanced abrasion resistance and superior solder iron cut-through protection. It also provides excellent dielectric and mechanical performance, making it well suited for rugged heat shrink applications and for use with cross-linked PVC jacketed wire and cable.
Features and Benefits
- 2:1 shrink ratio
- Engineered for total compatibility with cross-linked PVC jacketed wire and cable
- Improved solder iron cut-through and abrasion resistance
- Longer and less heat-sensitive shelf life
- 30% stronger than polyolefin
- Highly flame retardant
- Resists many chemicals and oils*
- Resists sunlight, moisture and fungus
- Highly flexible
- Meets UL, CSA and Military specifications
* Including chlorinated cleaners, lubricating grease, penetrating oils, electrical insulation oils, and others.
Applications
- Applications with cross-linked PVC wire and cable
- Insulation and strain relief of wire harnesses, wire splices, and terminals
- Soldering applications – tubing won’t shrink back or melt
- Applications that require ripple-free conformance around sharp bends
- Applications requiring outstanding dielectric and mechanical protection without damage to enclosed or adjacent components
- Protecting products – outdoors and indoors – from UV light, fading, harsh chemicals, chlorinated cleansers, moisture, fungus, dirt and abrasion
Technical Specifications
- UL Subject 224 VW-1
- CSA OFT rated for 600 V
- ASTM D 3150
- SAE-AMS-DTL-23053/2 Class 1 (with the exception of longitudinal shrinkage)
Technical Data
- Shrink Ratio: 2:1
- Minimum Recommended Shrink Temperature: 100°C (212°F)
- Operating Temperature Range: -20°C to 105°C
- Longitudinal Shrinkage: Approximately 15%
Physical / Electrical / Chemical Properties
- Specific Gravity: 1.32
- Tensile Strength: 3000 psi
- Ultimate Elongation: 300%
- Flammability: UL Subject 224 VW-1
- Volume Resistivity: 21.5 X 1012
- Dielectric Strength: 1,083 vpm
| Expanded I.D. Minimum | Recovered I.D. Maximum | Recovered Wall Nominal | Standard Packaging (per box) Product on Spools | |||||
|---|---|---|---|---|---|---|---|---|
| Size | in. | mm | in. | mm | in. | mm | ft. / Spool | Total ft. / Box |
| 3/64 | .046 | 1.17 | .023 | 0.58 | .020 | 0.51 | * 1,000′ | 2,000′ |
| 1/16 | .063 | 1.60 | .032 | 0.82 | .020 | 0.51 | * 1,000′ | 2,000′ |
| 3/32 | .093 | 2.36 | .046 | 1.17 | .025 | 0.64 | * 1,000′ | 2,000′ |
| 1/8 | .125 | 3.18 | .063 | 1.60 | .025 | 0.64 | * 1,000′ | 2,000′ |
| 3/16 | .187 | 4.75 | .093 | 2.36 | .025 | 0.64 | * 1,000′ | 2,000′ |
| 1/4 | .250 | 6.35 | .125 | 3.18 | .025 | 0.64 | * 1,000′ | 2,000′ |
| 3/8 | .375 | 9.53 | .187 | 4.75 | .028 | 0.71 | * 500′ | 1,000′ |
| 1/2 | .500 | 12.70 | .250 | 6.35 | .028 | 0.71 | * 250′ | 500′ |
| 3/4 | .750 | 19.05 | .375 | 9.53 | .033 | 0.84 | 250′ | 500′ |
| 1 | 1.000 | 25.40 | .500 | 12.70 | .038 | 0.97 | 250′ | 500′ |
| 1 1/2 | 1.500 | 38.10 | .750 | 19.05 | .043 | 1.09 | 100′ | 200′ |
| 2 | 2.000 | 50.80 | 1.000 | 25.40 | .048 | 1.22 | 100′ | 200′ |
* Pressurized Spools
All information presented is believed to be reliable and is offered only as a guide to product selection. As each application is unique, Insultab can make no warranties as to the suitability of any products for a particular use. Specifications are subject to change.
