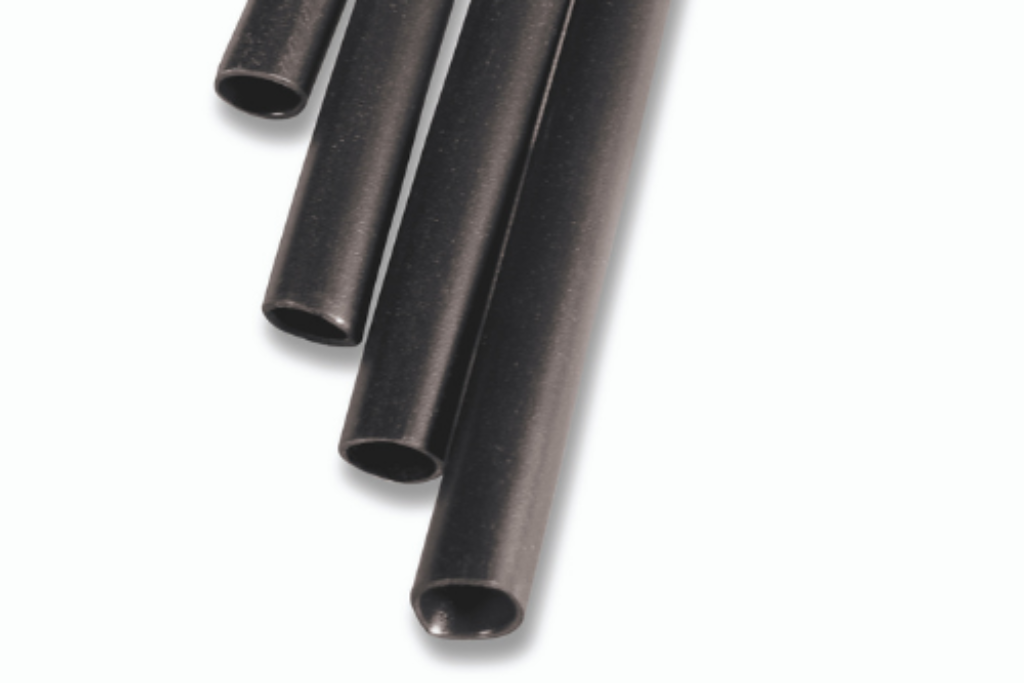

HS-VTN // Fluoroelastomer Heat Shrink Tubing
Cross-linked modified fluoroelastomer, very flexible tubing with a high, continuous operating temperature. It is excellent for use in aircraft and aerospace applications.
Features and Benefits
- 2:1 shrink ratio
- Superior resistance to highly corrosive chemicals, fuels, lubricants, acids and solvents at elevated temperatures
- Outstanding, high temperature performance
- Highly impact, abrasion and cut-through resistant
- Very flexible
- Easily marked
- Meets Military specifications
Applications
- Protection of wiring and component covers in aircraft and aerospace applications
- Automotive applications
- Hydraulic fluid transport mechanisms
- Chemical processing applications
- Applications up to 200°C
Technical Specifications
- SAE-AMS-DTL-23053/13
- MIL-R-46846,Type III, Class 1
- Standard Color: Black
Technical Data
- Shrink Ratio: 2:1
- Minimum Recommended Shrink Temperature: 175°C (347°F)
- Operating Temperature Range: -55°C to 200°C
- Longitudinal Shrinkage: +1/-10%
Physical / Electrical / Chemical Properties
- Specific Gravity: 1.7
- Ultimate Elongation: 450%
- Low Temperature Flexibility: 4 hrs. @ -55°C No cracking
- Flammability: Self-extinguishing
- Volume Resistivity: 1012 ohm-cm
- Dielectric Strength: 500 vpm
- Corrosion Resistance: Non-corrosive
- Fuel, Oil, Solvent, Acids and Alkalis Resistance:
Excellent
| Expanded I.D. Minimum | Recovered I.D. Maximum | Recovered Wall Nominal | Standard Packaging (per box) Product on Spools | |||||
|---|---|---|---|---|---|---|---|---|
| Size | in. | mm | in. | mm | in. | mm | ft./ Spool | Total ft. / Box |
| 1/8 | .125 | 3.18 | .062 | 1.57 | .030 | 0.76 | 200′ | 200′ |
| 3/16 | .187 | 4.75 | .093 | 2.36 | .035 | 0.89 | 200′ | 200′ |
| 1/4 | .250 | 6.35 | .125 | 3.18 | .035 | 0.89 | 200′ | 200′ |
| 3/8 | .375 | 9.53 | .187 | 4.75 | .035 | 0.89 | 200′ | 200′ |
| 1/2 | .500 | 12.70 | .250 | 6.35 | .035 | 0.89 | 100′ | 100′ |
| 5/8 | .625 | 15.88 | .312 | 7.92 | .042 | 1.07 | 100′ | 100′ |
| 3/4 | .750 | 19.05 | .375 | 9.53 | .042 | 1.07 | 100′ | 100′ |
| 7/8 | .875 | 22.23 | .438 | 11.11 | .049 | 1.24 | 100′ | 100′ |
| 1 | 1.000 | 25.40 | .500 | 12.70 | .049 | 1.24 | 50′ | 50′ |
| 11/4 | 1.250 | 31.75 | .625 | 15.88 | .055 | 1.40 | 50′ | 50′ |
* Pressurized Spools
All information presented is believed to be reliable and is offered only as a guide to product selection. As each application is unique, Insultab can make no warranties as to the suitability of any products for a particular use. Specifications are subject to change.
