UHP PFA Tubing for Semiconductor Performance Guide

Ultra-high-purity (UHP) PFA fluoropolymer tubing is one of the most specification-sensitive components in a semiconductor fab. The wrong material choice or a supplier without rigorous process controls can introduce extractables, particles, or dimensional variation that contaminates chemistry, disrupts yield, and stops qualification in its tracks.  This guide covers what makes Altaflo 480 the specification-grade choice for chemical delivery in semiconductor wet process environments: materials science, SEMI compliance data, and what cleanroom manufacturing  means in practice. 

What is Pexco Altaflo 480 UHP PFA Tubing?

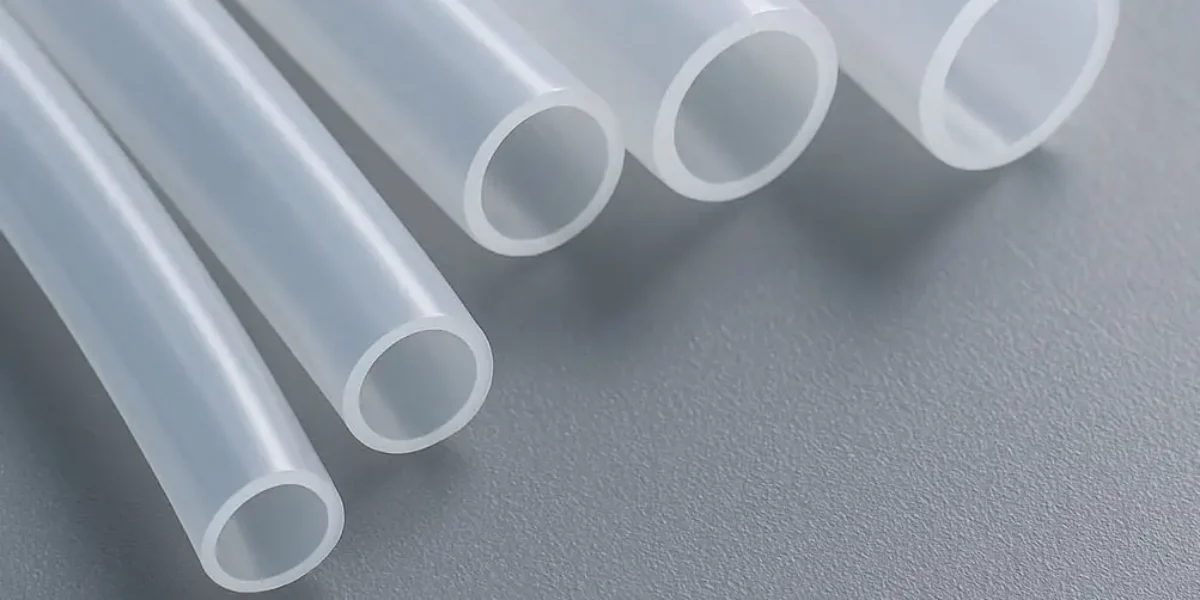

Altaflo 480 is Pexco’s ultra-high-purity (UHP) PFA (perfluoroalkoxy) tubing engineered for critical chemical delivery in semiconductor fabrication. It is designed for the most demanding wet process applications in semiconductor fabs, including chemical mechanical planarization (CMP) and etch processes where contamination tolerance is measured in parts per trillion and dimensional drift is not an option. 

Unlike commodity PFA tubing, Atlaflo 480 is extruded from 100% virgin-grade resin in a controlled environment. Every lot is produced under ISO-9001-certified quality controls with full batch-level documentation and laser marketing for traceability. 

---

What chemistries is Altaflo 480 compatible with? 

Altaflo 480 is compatible with the full range of chemistries used in semiconductor wet processing, including: 

• Ultra-pure oxidants — hydrogen peroxide (H₂O₂), ozone (O₃) 

• Inorganic acids — hydrofluoric acid (HF), hydrochloric acid (HCl), sulfuric acid (H₂SO₄), nitric acid (HNO₃), phosphoric acid (H₃PO₄) 

• Bases — ammonium hydroxide (NH₄OH) 

• Solvents — isopropyl alcohol (IPA), acetone, NMP 

• Specialty chemistries — SC-1, SC-2, SPM (sulfuric peroxide mixture), buffered oxide etch (BOE) 

PFA’s fully fluorinated backbone provides near-universal resistance to aggressive media across the temperature range encountered in fab chemical delivery systems. Chemical resistance is subject to chemical concentration ratio. For detailed compatibility data, contact a Pexco applications engineer. 

Disclaimer: Chemical resistance is subject to chemical concentration ratio

---

What are the Key Performance Properties of Altaflo 480?

Exceptional operating temperature range: Altaflo 480 maintains dimensional stability and chemical resistance from cryogenic conditions to continuous service at 260°C (500°F), covering the full range of semiconductor wet process temperatures. 

Broad chemical compatibility: The fully fluorinated PFA structure resists attack from virtually all semiconductor process chemistries, including strong oxidants, concentrated acids, and organic solvents that would degrade other polymer tubing. 

Low extractables and minimal leachables: Extractables and leachables are the primary failure mechanism for polymer components in UHP chemical delivery. Altaflo 480 is produced from virgin-grade resin with tightly controlled lot-to-lot consistency to minimize metallic and organic contamination contribution. 

Tight dimensional tolerances: Consistent ID, OD, and wall thickness are critical for reliable fittings connections and predictable flow characteristics. Altaflo 480 is extruded to tight tolerances with in-line measurement and laser marking. 

Robust barrier properties: Low gas and liquid permeation rates ensure that process chemistry reaches its destination without introducing atmospheric contaminants or losing concentration across the tubing wall. 

High tensile strength: Maintains integrity under higher system pressures, reducing risk of rupture or leaks.  Minimizes expansion under load, keeping flow rates consistent and predictable.  Withstands pulling, routing and fittings assembly without damage.  Resists mechanical fatigue from repeated pressurization cycles 

Excellent Flex Life: Ideal for applications with motion, vibration (e.g., pumps, wafer tools).  Prevents formation of tiny cracks that could lead to leaks or contamination.  Can be installed in tight spaces or complex layouts without stressing the material.  Maintains performance even after repeated flexing cycles 

High resistance to fluorosurfactants: Safely transports aggressive cleaning agents and etchants without degradation.  Prevents leaching, extractables, or contamination of ultra-pure chemicals. Avoids swelling or softening that could alter inner diameter or flow.  Reduce failure due to chemical attack 

---

SEMI Standards for UHP Components

SEMI has established four standards for ultra-high-purity applications. Three of these — SEMI F57, SEMI C90, and SEMI F104 — apply to both components and raw materials and set minimum performance requirements for UHP use. 

SEMI has established four standards governing ultra-high-purity components. Three apply to both components and raw materials and set minimum performance requirements for UHP use in semiconductor fabs: 

Standard	Scope
SEMI F57	Metallic contamination from polymer components — defines acceptable extractables levels for wetted materials
SEMI C90	Cleanliness standards for polymer components — sets particle and surface contamination limits
SEMI F104	Particle contribution from polymer components — specifies maximum particle generation during fluid handling

These three standards — F57, C90, and F104 — form the baseline qualification requirement for polymer tubing in chemical delivery systems at leading fabs and OEMs worldwide. 

---

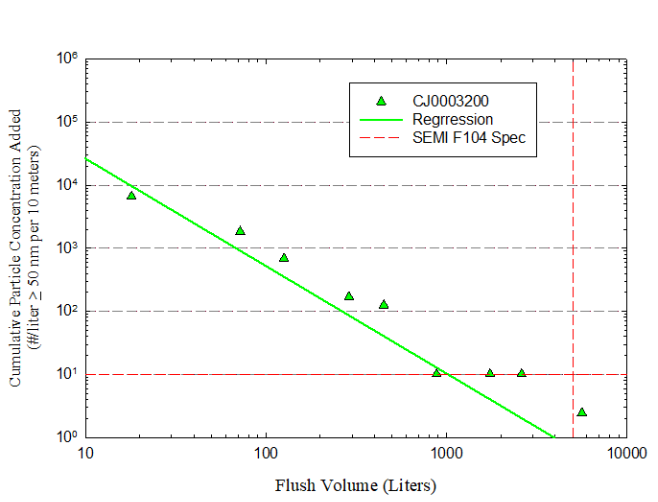

SEMI F104 Compliance Summary — Altaflo 480-0500-062-0C (3/8″ x ½” OD NAT)

Standard	Liquid	Analyte(s)	Altaflo 480 Tubing
SEMI C90	5%HNO3	Metals	✔
SEMI F57	(H)UPW	Metals  Other Ions  TOC	✔
SEMI F104	UPW	100nm particles	✔

---

Why Is Altaflo 480 Specified at Leading Fabs?

Altaflo 480 is the product of choice for major fabs in the U.S. and internationally because it:

• Uses precision cleanroom extrusion to minimize micro-leakage risk
• Delivers consistent flow characteristics for high process reproducibility
• Includes laser marking and full documentation for traceability in critical failure analysis

Altaflo 480 has been qualified and is in active use at semiconductor fabs and OEMs across the U.S. and internationally, including customers in logic, memory, and advanced packaging.

Three factors consistently drive the specification decision:

1. Cleanroom extrusion that minimizes micro-leakage risk Altaflo 480 is extruded in a climate-controlled cleanroom environment with rigorous in-process monitoring. Dimensional consistency across the length of a tube run is critical — micro-variation in wall thickness or OD creates leak risk at fittings connections. Pexco’s extrusion process is designed to hold tolerance across full production lengths, not just at the ends.

2. Consistent flow characteristics for process reproducibility In wet process tools and chemical delivery systems, repeatable chemistry concentration depends on repeatable flow. Altaflo 480’s tight ID tolerances and smooth interior surface support the consistent flow characteristics that fab process engineers require for high-yield, reproducible process results.

3. Laser marking and full documentation for traceability Every length of Altaflo 480 is laser marked with lot identification. Batch-level documentation — including resin lot, extrusion date, dimensional data, and SEMI test records — is maintained and retrievable. In a critical failure analysis (CFA) event, this traceability allows rapid root cause investigation without replacing entire chemical delivery systems.

---

Specifications and Availability

Altaflo 480 is available in a range of standard OD/ID combinations from 1/8″ to 1″ OD, in natural (translucent) finish. Custom dimensions and lengths are available on short lead times.

To request a quote, datasheet, or SEMI compliance documentation: pexco.com/contact-us | 844-352-5777
