Built for the Barrier: Standard and Hinged Barrier Reflectors
Highly Visible Standard and Hinged Barrier Delineation
Concrete barriers play an essential role in separating traffic, protecting work zones, and guiding motorists through complex roadway environments. At night or during low-light conditions, these structures can become more difficult for drivers to distinguish from the roadway around them. Effective delineation creates a clearer visual reference, helping motorists recognize barrier locations and roadway alignment when visibility is reduced.
Pexco’s PCBM (portable concrete barrier marker) family includes both standard non-hinged and hinged designs, giving roadway agencies, contractors, and maintenance crews options for a range of temporary and permanent applications. While both provide highly visible barrier delineation, differences in construction can make one style better suited to a particular roadway environment.
What Are Pexco Barrier Reflectors Used For?
Our barrier reflectors enhance the visibility and delineation of barriers and other roadside structures. Standard PCBMs provide reliable top- or side-mount delineation on concrete barriers. Typical applications include temporary and permanent barrier walls, concrete bridge parapets, and wooden guardrail posts.
Barrier reflectors use reflective sheeting to create a bright visual target for approaching motorists. Available sheeting options include AR 1000, Diamond Grade, and Flexible High Intensity, allowing users to select an option that aligns with local specifications and project needs.
Standard Barrier Reflectors: Versatility of Applications

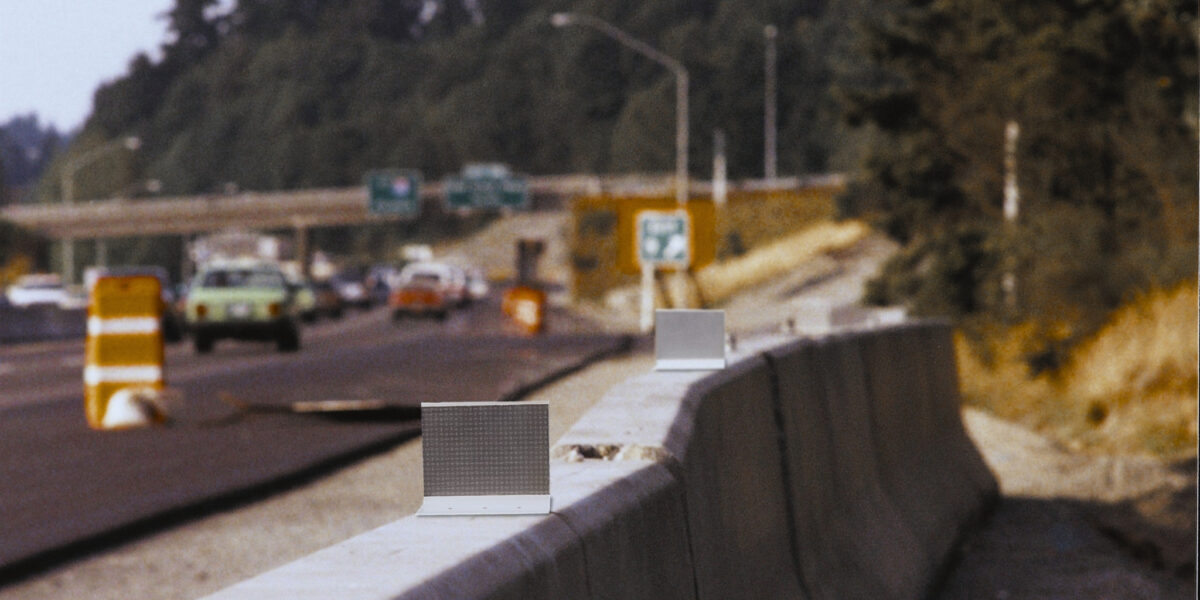

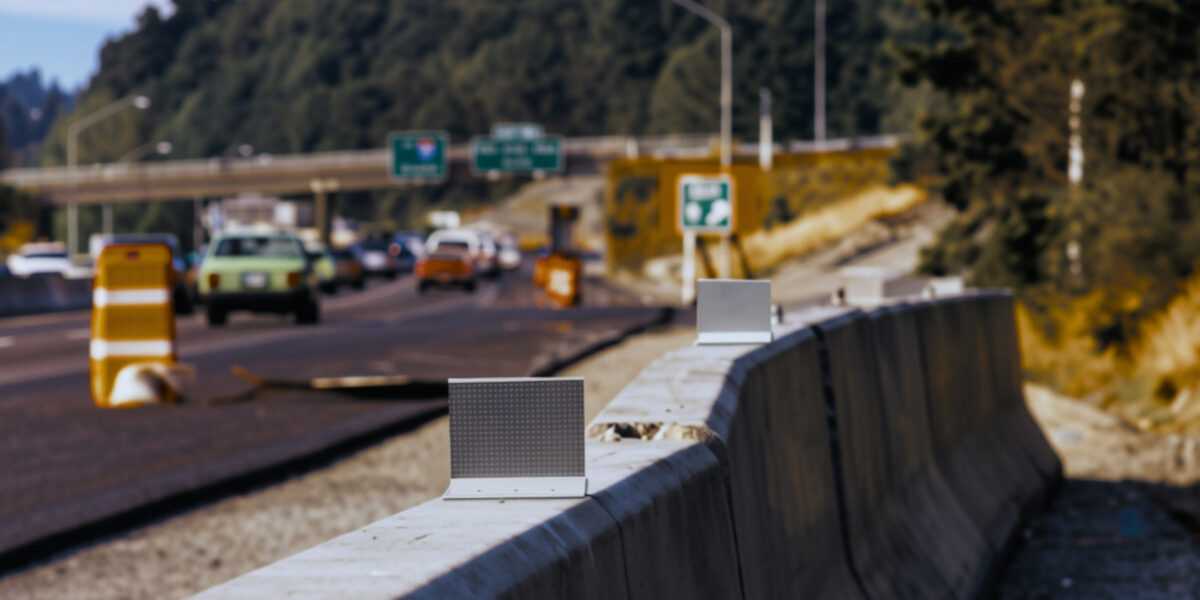

Pexco’s standard, non-hinged barrier reflectors provide a straightforward solution for durable top- or side-mounted delineation. Pexco manufactures them with UV-stabilized polymers for work zones and permanent installations and pre-drills each base for adhesive or bolt mounting.
The standard family also provides multiple sizes and configurations for different roadway needs. The PCBM-9 offers nine square inches of reflective sheeting. It also meets minimum MUTCD reflectivity requirements and supports both top- and side-mount installations.
For areas where snow accumulation is a concern, the PCBM-15 uses an eight-inch height to position the reflector above snow on the barrier. The PCBM-L16 provides delineation 48 inches above the roadway when mounted on a standard 32-inch barrier wall. For work zones needing a larger reflective target, the Big Dog PCBM provides 96 square inches of reflectivity.
Hinged Barrier Reflectors: Unique Applications
Pexco’s hinged barrier reflectors add a flexible polyurethane “Gator Jaws” hinge that allows the reflector to bend when impacted and spring back toward an upright position. This design provides repeated rebound, reliable delineation, and reduced maintenance in areas where markers may experience frequent impacts.
The hinge creates both a chemical and mechanical bond between the base and reflective panel, while its “jaw” design increases the available bonding surface. The polyurethane remains flexible even in sub-freezing temperatures, making hinged PCBMs particularly well suited to demanding roadway environments and cold climates.
Hinged vs. Non-Hinged Barrier Reflectors
Neither style is universally “better”; the right choice depends on the barrier, impact exposure, climate, mounting requirements, and desired reflector configuration.
A standard non-hinged PCBM may be the better fit when the application calls for conventional top- or side-mounted delineation. It might also be right when size, reflector height, or reflective area are the key considerations. The broad standard product family includes options designed specifically for snowy climates, elevated delineation, and work zones requiring larger reflective targets.
A hinged PCBM works well in locations where markers may experience frequent strikes, flexing, or repeated abuse. The Gator Jaws hinge bends on impact and rebounds to its original position. The reflector remains flexible in cold temperatures, which can help reduce maintenance in higher-impact environments. Hinged models can also be a strong choice for movable barrier systems, where additional flexibility may be beneficial.
Both styles feature pre-drilled bases for adhesive or bolt mounting and offer multiple reflective sheeting options to meet project specifications.
Which Pexco Barrier Reflector Is Right for Your Project?
The best barrier reflector starts with the roadway application. For a fixed barrier requiring a traditional top- or side-mount solution, a standard PCBM may offer the right combination of size, height, and reflectivity. For barriers exposed to repeated impacts, movable systems, or demanding cold-weather conditions, a hinged model can provide additional flexibility and rebound performance.
With both standard and hinged options, Pexco’s PCBM family gives roadway professionals the ability to match barrier delineation to the conditions where it will be used. This helps keep critical roadway boundaries visible when motorists need them most.
Interested in learning more or speaking with an expert?
Contact us here to get in touch with an expert and discuss whether a standard or hinged barrier reflector is the right solution for your next roadway project at.
Frequently Asked Questions
What is a barrier reflector?
A barrier reflector is a roadway delineation device designed to make concrete barriers and other roadside structures more visible to motorists. Pexco’s PCBM barrier reflectors are used on temporary and permanent concrete barriers, bridge parapets, and other applications where a clear reflective target can help drivers recognize roadway boundaries, especially at night or during adverse weather.
What is the difference between standard and hinged barrier reflectors?
The primary difference between standard and hinged barrier reflectors is that hinged reflectors include a flexible hinge designed to bend and rebound after impact, while standard reflectors use a non-hinged, rigid design.
When should I choose a standard, non-hinged barrier reflector?
You would choose a standard barrier reflector when the mounting configuration, reflector size, height, or reflective area are primary considerations. Pexco offers standard PCBMs for top- and side-mount applications, heavy-snow environments, elevated delineation, and work zones requiring larger reflective targets.
When should I choose a hinged barrier reflector?
You would choose a hinged barrier reflector in applications where repeated impacts, flexibility, and rebound performance are primary considerations. Pexco’s hinged PCBMs use a polyurethane Gator Jaws® hinge designed to flex when struck and return toward an upright position. This design can be particularly useful in demanding roadway environments and movable barrier systems.
Are Pexco barrier reflectors suitable for cold-weather applications?
Pexco’s barrier reflector options are designed for cold-weather and snow-prone environments. Pexco PCBMs are designed to resist impacts even in cold weather, while the PCBM-15 positions its reflector eight inches above the barrier to help maintain visibility where snow accumulates.
Proper fence design and structural support remain important, especially in areas with higher wind loads. Adding privacy slats increases the amount of wind captured by a chain link fence, so local conditions should be considered during project planning.
Which Pexco barrier reflector is best for work zones?
The best barrier reflector for a work zone depends on the required visibility, mounting location, and likelihood of impact. Standard models such as the Big Dog PCBM provide a large reflective target, 96 square inches of reflective sheeting, for applications where additional brightness is important. Hinged models may be preferable where the reflector is more likely to experience repeated impacts or movement.
How do I choose the right Pexco barrier reflector for my application?
Choosing the right barrier reflector starts by considering the barrier type, mounting location, reflector height, required reflective area, climate, and potential for impact. Standard PCBMs offer a broad range of sizes and mounting configurations, while hinged PCBMs add flexibility and rebound performance for more impact-prone applications. Pexco offers multiple configurations so agencies, contractors, and roadway maintenance teams can match the reflector to the specific needs of the project.
