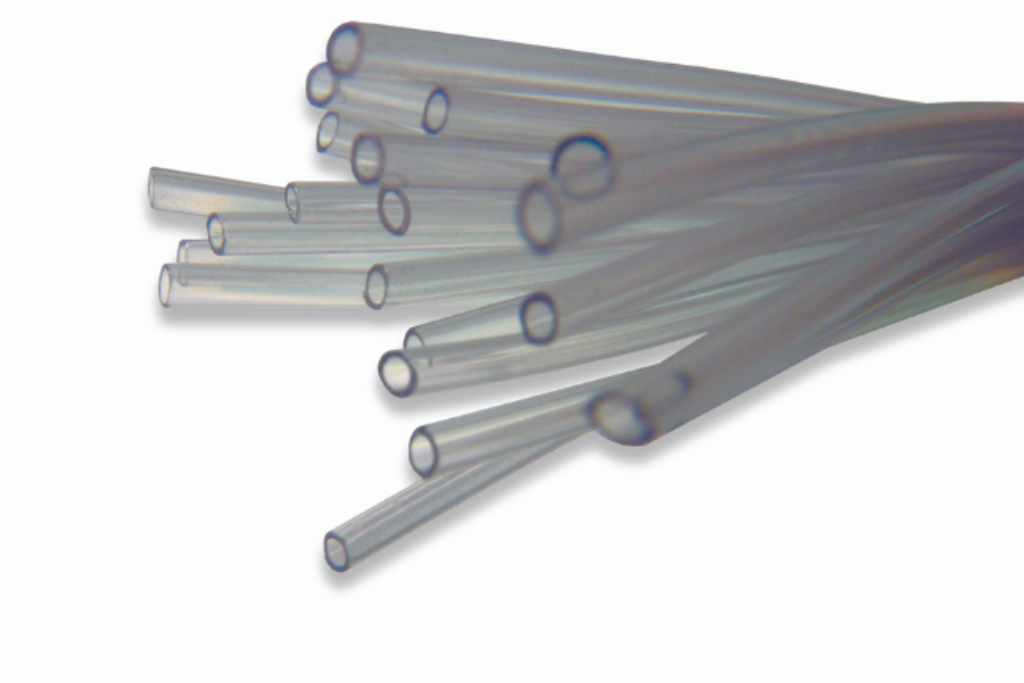

4900 X .032 Heavy Wall PVC Tubing/Sleeving
4900 X .032
Similar to 4900, 105°C rated lead-free PVC tubing with a heavier 1/32” wall thickness providing maximum insulation and protection.
Request More Information
"*" indicates required fields
Applications
- Applications requiring compliance with UL specifications for .032″ spacing between components
- Bundling and protecting wire harnesses
- Insulating wire splices, terminals and connectors
- Protection against chafing
- Ground strap protection
Features and Benefits
- 105°C rated lead-free PVC tubing
- Excellent general purpose flexible tubing
- Resistant to many chemicals, oils and acids
- Resistant to heat
- Resistant to abrasion
- High dielectric strength
- Wide operating temperature range
- Passes UL VW-1 Flame Test
- Meets “Lead Free” requirements
- Meets UL, CSA and Military specifications
- Operating Temperature Range: -20°C to 105°C
Physical / Electrical / Chemical Properties
- Specific Gravity: 1.32
- Tensile Strength: 2780 psi
- Ultimate Elongation: 260%
- Brittleness Temperature: -33°C
- Flammability: UL Subject 224 VW-1
- Volume Resistivity: 1.6 x 1014
- Dielectric Strength: 870 vpm
- Corrosive Effect: Non-corrosive
- Fungus Resistance: No growth
- Superior Environmental and UV Stability
Standard Colors
- Black, Clear
Nominal I.D. | Nominal Wall | Standard Packaging (per box) Product on Spools |
||||
---|---|---|---|---|---|---|
AWG No. | in. | mm | in. | mm | ft. / Spool |
Total ft./ Box |
24 | .022 | 0.56 | .012 | 0.30 | 2,500′ | 5,000′ |
22 | .027 | 0.69 | .012 | 0.30 | 2,500′ | 5,000′ |
20 | .034 | 0.86 | .016 | 0.41 | 1,000′ | 4,000′ |
19 | .038 | 0.97 | .016 | 0.41 | 1,000′ | 4,000′ |
18 | .042 | 1.07 | .016 | 0.41 | 1,000′ | 4,000′ |
17 | 047 | 1.19 | .016 | 0.41 | 1,000′ | 4,000′ |
16 | .053 | 1.35 | .016 | 0.41 | 1,000′ | 4,000′ |
15 | .059 | 1.50 | .016 | 0.41 | 1,000′ | 4,000′ |
14 | .066 | 1.68 | .016 | 0.41 | 1,000′ | 4,000′ |
13 | .076 | 1.93 | .016 | 0.41 | 1,000′ | 4,000′ |
12 | .085 | 2.16 | .016 | 0.41 | 1,000′ | 4,000′ |
11 | .095 | 2.41 | .016 | 0.41 | 1,000′ | 4,000′ |
10 | .106 | 2.69 | .016 | 0.41 | 1,000′ | 4,000′ |
9 | .118 | 3.00 | .020 | 0.51 | 1,000′ | 4,000′ |
8 | .133 | 3.38 | .020 | 0.51 | 1,000′ | 4,000′ |
7 | .148 | 3.76 | .020 | 0.51 | 1,000′ | 4,000′ |
6 | .166 | 4.21 | .020 | 0.51 | 1,000′ | 2,000′ |
5 (3/16) | .186 | 4.72 | .020 | 0.51 | 1,000′ | 2,000′ |
4 | .208 | 5.28 | .020 | 0.51 | 1,000′ | 2,000′ |
3 | .234 | 5.94 | .020 | 0.51 | 1,000′ | 2,000′ |
1/4 | .250 | 6.35 | .020 | 0.51 | 1,000′ | 2,000′ |
2 | .263 | 6.68 | .020 | 0.51 | 1,000′ | 2,000′ |
1 | .294 | 7.47 | .020 | 0.51 | 1,000′ | 2,000′ |
5/16 | .313 | 7.94 | .025 | 0.64 | 500′ | 1,000′ |
0 | .330 | 8.38 | .025 | 0.64 | 500′ | 1,000′ |
3/8 | .375 | 9.53 | .025 | 0.64 | 500′ | 1,000′ |
7/16 | .438 | 11.11 | .025 | 0.64 | 500′ | 1,000′ |
1/2 | .500 | 12.70 | .025 | 0.64 | 500′ | 1,000′ |
9/16 | .563 | 14.29 | .030 | 0.76 | 250′ | 500′ |
5/8 | .625 | 15.88 | .030 | 0.76 | 250′ | 500′ |
3/4 | .750 | 19.05 | .035 | 0.89 | 250′ | 500′ |
7/8 | .875 | 22.23 | .035 | 0.89 | 100′ | 400′ |
1″ | 1.000 | 25.40 | .035 | 0.89 | 100′ | 400′ |
1 1/8 | 1.125 | 28.58 | .035 | 0.89 | 100′ | 400′ |
1 1/4 | 1.250 | 31.75 | .040 | 1.02 | 100′ | 400′ |
1 3/8 | 1.375 | 34.93 | .045 | 1.14 | 50′ | 200′ |
1 1/2 | 1.500 | 38.10 | .045 | 1.14 | 50′ | 200′ |
1 3/4 | 1.750 | 44.45 | .055 | 1.40 | 50′ | 200′ |
2 | 2.000 | 50.80 | .060 | 1.52 | 50′ | 200′ |
